Price: $131.99
(as of Apr 20, 2025 18:53:10 UTC – Details)
Product Description
ELP 4K USB & HDMI camera with manual zoom, Type-C power supply, simultaneous display!
Model: ELP-USB4KCAM01H-CFV 5-50mm (HD CS 5-50mm 10X zoom lens)
High Resolution 4K HDMI USB Dual Output Camera for Computer TV Monitor Projector:This ELP 4K HDMI USB Camera is that it’s much more than a webcam, it is an industrial grade camera with a metal housing and base that can be firmly attached for permanent mounting.The camera is full 4K resolution at 30 Hz, and has both USB and HDMI outputs and both can be used concurrently. With 5-50mm 10X zoom CS mount lens, you can shooting at different distances, you can adjust zoom, brightness, and clarity by rotating the lens. The IMX415 sensor works with as little as 0.2 LUX.This is designed to be used in an industrial setting and is great for monitoring your 3D printer/laser cutter/router. It’s stable and can be used in an environment that isn’t suitable for a cheap webcam.
Mini size light weight 4k hdmi usb camera for computer, TV, projector, monitor,raspberry pi,android development board,Jetson Nano,etc

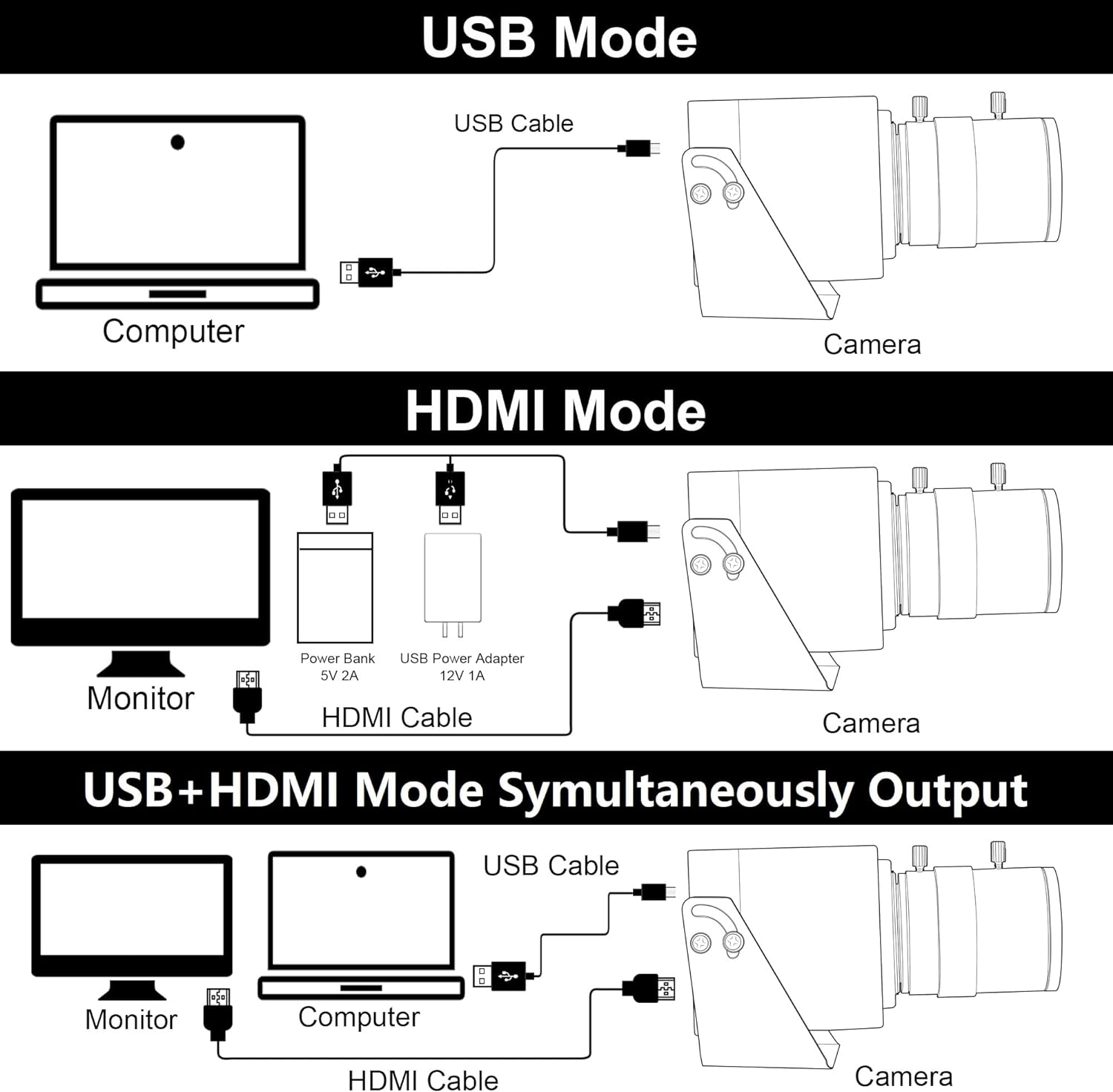

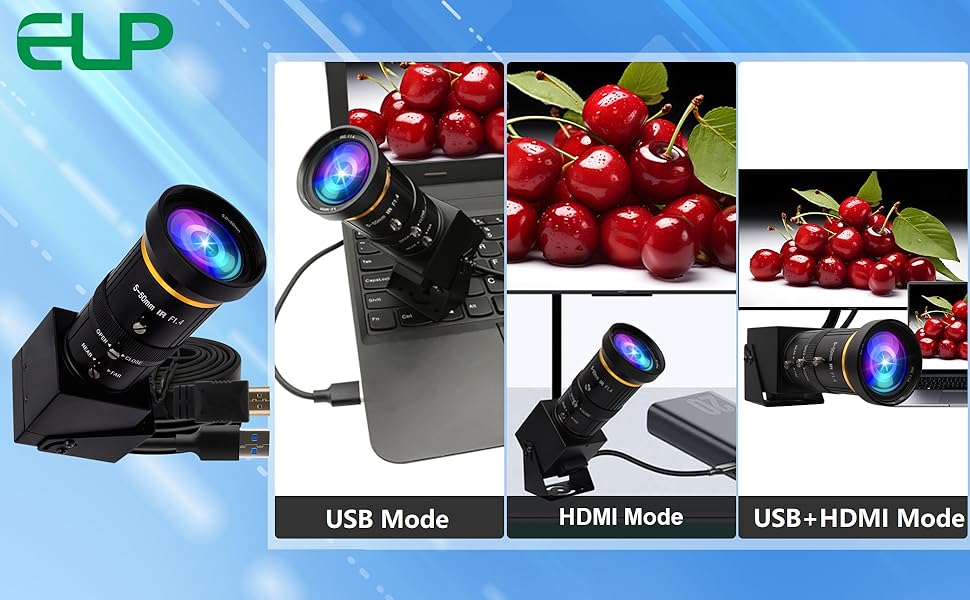

3 Display Modes:
USB mode/ HDMI mode/ USB&HDMI mode simultaneously display.
– USB Mode:
camera with USB interface plug to laptop directly, just plug and play.
– HDMI Mode:
camera with HDMI cable plug to monitor/TV/projector directly, USB power(power bank or USB adapter).
-USB+HDMI Mode simultaneously output:
HDMI connect to monitor, USB cable connect to laptop, two screen display simultaneously
With 5-50mm 10X zoom lens, manual focus, get up close to the subject, great zoom range and very high quality images.
There is a focus range of 5-50mm for shooting at different distances.

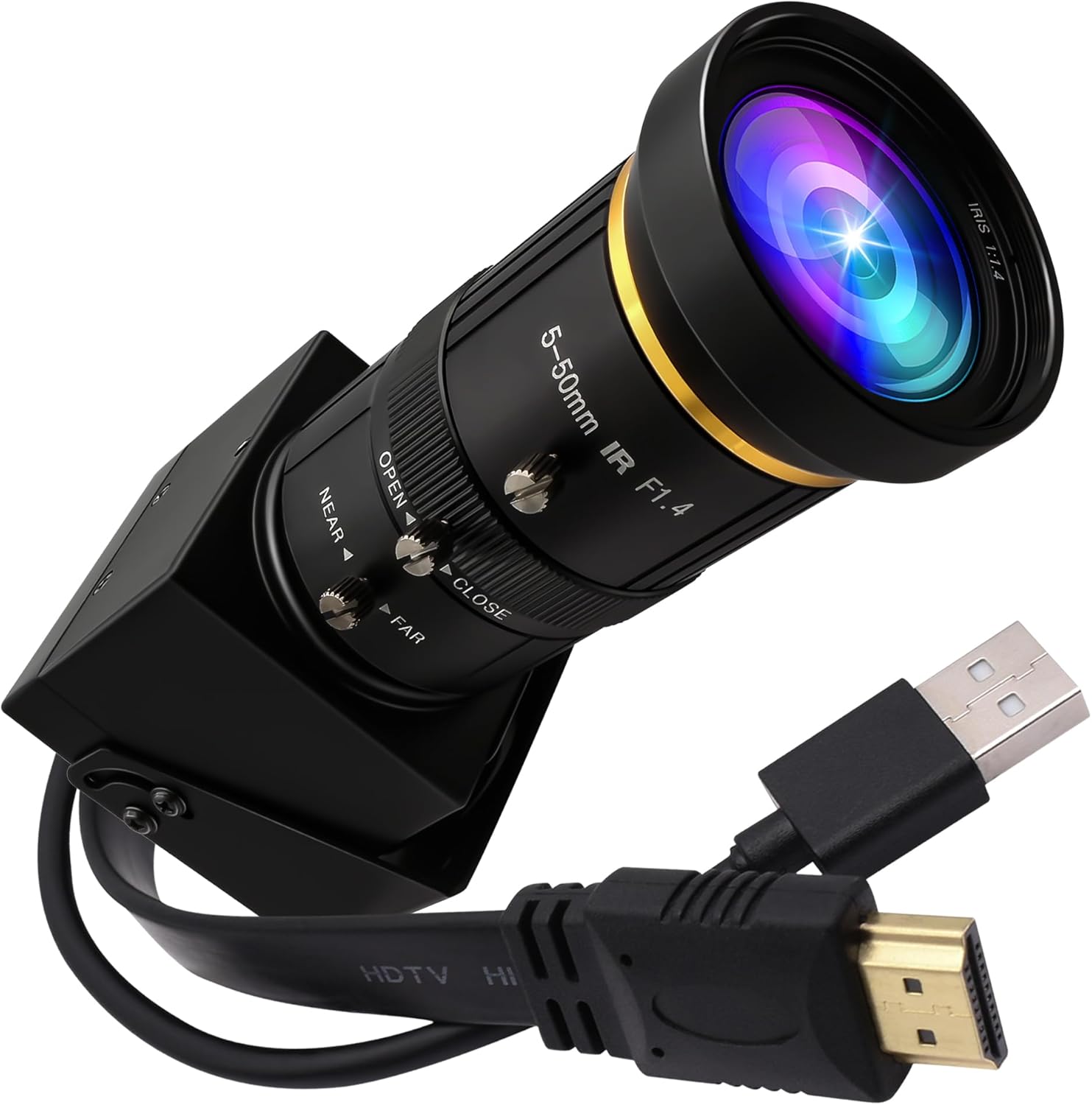

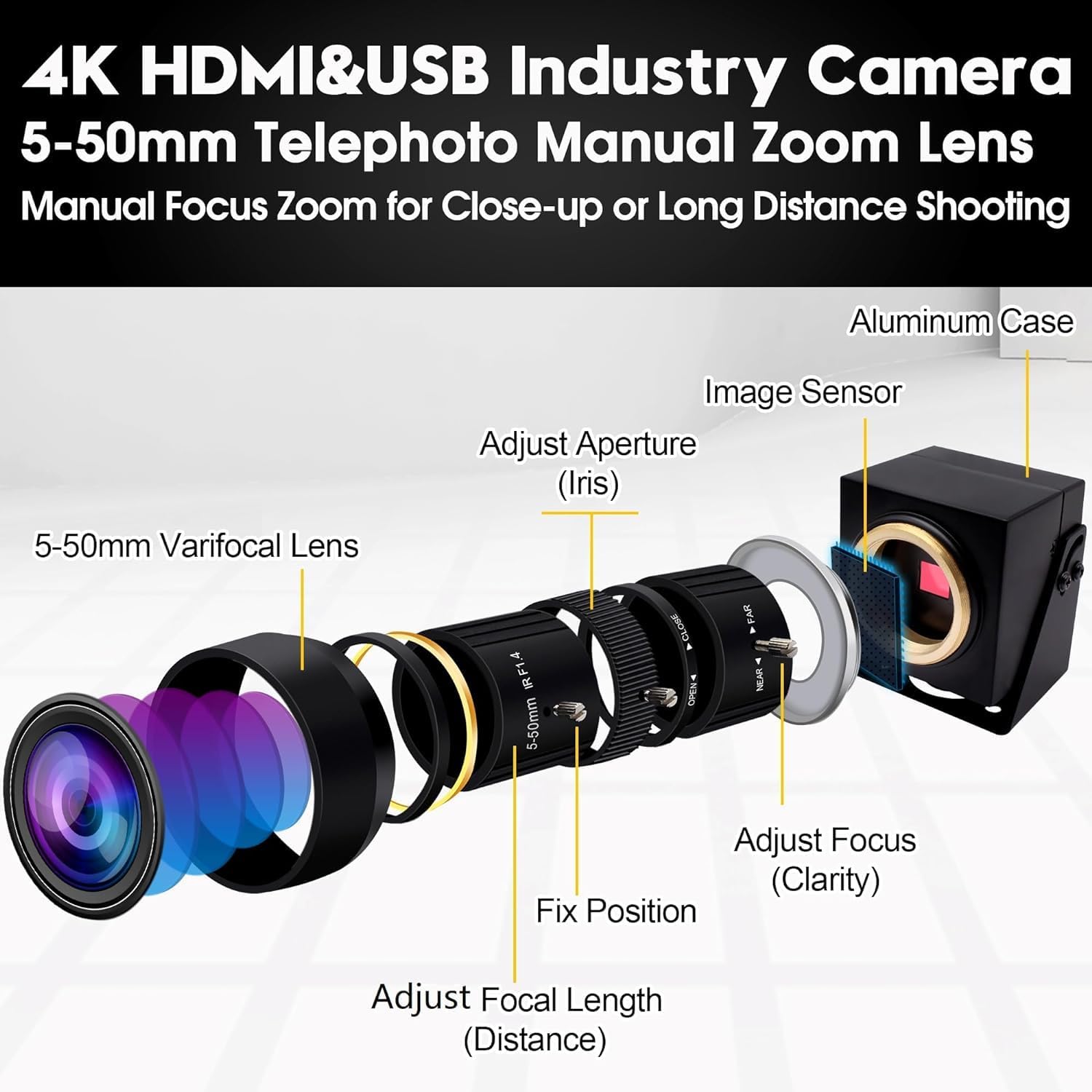

There are three ‘dials’ on the lens assembly giving you zoom,aperture and focus. On widest angle you got it to focus on a subject right next to the lens giving a pretty good macro view of it. On zoom it does bring in further objects pretty well too.
Support 3 types of compress format H.264/MJPEG /YUY2 optional.
Why choose H.264?
H.264 is the successor to the previous MJPEG standard. H.264 was designed to improve video compression efficiency and reduce the amount of data needed to transmit or store high-quality video content.H.264-encoded videos can achieve the same video quality at a lower bit rate or achieve higher video quality at the same bit rate compared to Mjpeg-encoded videos. This is especially important for high-resolution content like 4K videos.
Suitable with multiple tech devices, designed for industrial and medical use, perfect for YouTubers who fix electronics and do close-up work!
Application:
It is more a close up or monitoring camera for an industrial application, close inspection, embedded system, a great camera for live stream or web meeting or home monitoring, mini size, light weight, compact 4k hdmi usb camera for all kinds of machine vision:
Home surveillance systemDashcamMonitoring 3D PrinterObject recognition and trackingMini lightburn camera for laser cutter/router/engraverRobotic and Machine VisionBaby CameraElectronic microscopeVideo conferenceLive streaming
4K Ultra HD Webcam High frame rate 30fps@3840×2160 H.264 HDMI USB Camera, plug and play, uvc compliant, very easy install!
Product Parameters: ELP-USB4KCAM01H-CFV(5-50mm)
Sensor: 1/2.8” SONY IMX415 ColorMax Resolution: 3840(H)*2160(V)Video Compression: MJPEG/YUY2(YUYV)/H.264Resolution & Frame rate:3840×2160 MJPEG 30fps/ H.264 30fps/2560×1440 MJPEG 30fps/H.264 30fps/1920×1080 MJPEG 30fps/H.264 30fps/YUY2 5fps/1280×720 MJPEG 30fps/H.264 30fps/ YUY2 10fps/1024×576 MJPEG 30fps/H.264 30fps/YUY2 15fps/960×540 MJPEG 30fps/H.264 30fps/YUY2 15fps/640×480 MJPEG 30fps/H.264 30fps/YUY2 30fpsMin illumination: 0.2 LuxShutter Type: Electronic Rolling Shutter/Frame ExposureConnecting Port Type: USB 2.0 Interface&HDMI v1.4 InterfaceAdjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, ExposureLens Parameter: HD 5-50mm CS mount lensPower Supply & Interface: USB Type-C Power Supply, Type-C&HDMI Display SimultaneousStorage Temperature：-20°C to 85°C, working Temperature：-10°C to 70°CUSB Cable：2 pieces cables(1pcs 1.2m cable with Type-C port, 1pcs 1.5m cable with HDMIport)Operating System Request：WinXP/Vista/WIN7/WIN8/WIN9/WIN10/WIN11, etc Linux with UVC/Mac-OS X 10.4.8 or later/ANDROID/UBUNTU/CHROME OS/Raspberry Pi
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.7 out of 5 stars 27
4.4 out of 5 stars 64
4.1 out of 5 stars 12
3.3 out of 5 stars 16
3.3 out of 5 stars 16
4.1 out of 5 stars 11
Price
$131.99$131.99 $119.99$119.99 $126.99$126.99 $160.99$160.99 $145.99$145.99 $148.99$148.99
Max Resolution
4K 3840HX2160P 4K 3840HX2160P 4K 3840HX2160P 4K 3840HX2160P 4K 3840HX2160P 48Megapixel 8000HX6000P
Image Sensor
1/2.8″ IMX415 1/2.8″ IMX415 1/2.8″ IMX415 1/2.8″ IMX415 9 1/2.8″ IMX415 1/2″ S5KGM1ST04-FG9
Lens
5-50mm 10X zoom CS mount lens 2.8-12mm 4X zoom CS mount lens 3.6-10mm 3X zoom CS mount lens 5-50mm 10X zoom CS mount lens 2.8-12mm 4X zoom CS mount lens 3.6-10mm 3X zoom CS mount lens
Mini Illumination
0.2LUX 0.2LUX 0.2LUX 0.2LUX 0.2LUX 0.3LUX
Interface
USB 2.0 &HDMI v1.4 Interface USB 2.0 &HDMI v1.4 Interface USB 2.0 &HDMI v1.4 Interface USB 3.0 &HDMI v1.4 Interface USB 3.0 &HDMI v1.4 Interface MJPEG/YUY2
Resolution & Frame:
H.264 4K@30fps H.264 4K@30fps H.264 4K@30fps H.264 4K@60fps H.264 4K@60fps 4K@30fps
Compression Format
H.264/MJPEG/YUY2 H.264/MJPEG/YUY2 H.264/MJPEG/YUY2 H.264/MJPEG/YUY2 H.264/MJPEG/YUY2 MJPEG/YUY2
USB Cable
1PCS 1.2m cable with Type-C port, 1PCS 1.5m cable with HDMI port 1PCS 1.2m cable with Type-C port, 1PCS 1.5m cable with HDMI port 1PCS 1.2m cable with Type-C port, 1PCS 1.5m cable with HDMI port 1PCS 1.5m cable with Type-C port, 1PCS 1.5m cable with HDMI port 1PCS 1.5m cable with Type-C port, 1PCS 1.5m cable with HDMI port 3 Meters USB cable
Shutter
Rolling shutter Rolling shutter Rolling shutter Rolling shutter Rolling shutter Rolling shutter
Compatible Device
Computer, laptop, pc, tv, monitor, projector, tablets, android device, Jetson Nano, Android development board, raspberry pi, etc. Computer, laptop, pc, tv, monitor, projector, tablets, android device, Jetson Nano, Android development board, raspberry pi, etc. Computer, laptop, pc, tv, monitor, projector, tablets, android device, Jetson Nano, Android development board, raspberry pi, etc. Computer, laptop, pc, tv, monitor, projector, tablets, android device, Jetson Nano, Android development board, raspberry pi, etc. Computer, laptop, pc, tv, monitor, projector, tablets, android device, Jetson Nano, Android development board, raspberry pi, etc. Computer, laptop, pc, tablets, android device, Jetson Nano, Android development board, raspberry pi, etc

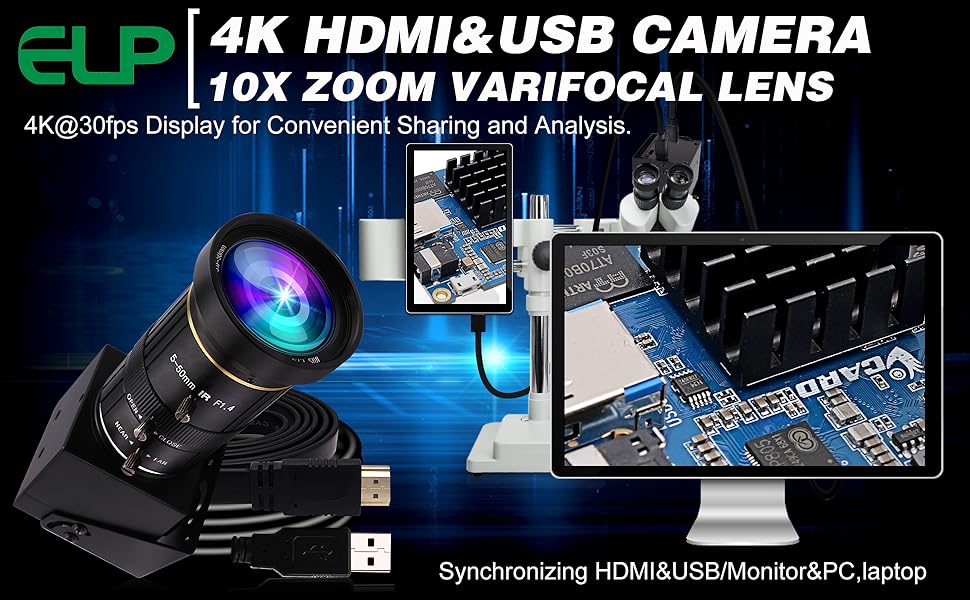

This ELP HDMI USB camera is full 4K resolution at 30 Hz, and has both USB and HDMI outputs and both can be used concurrently. USB plug to laptop, meantime HDMI connect to the monitor, two screen display simultaneously .
3 Display Modes: HDMI mode/USB mode/HDMI+USB mode.
5-50mm 10X Zoom Varifocal CS mount Lens+2X digital zoom for close-up or long distance shooting.
4K Ultra HD Camera, Max resolution 3840(H) x2160 (V), can drive 3840×2160 30fps at H.264/MJPEG.
Support 3 types of compression format: H.264/MJPEG /YUY2 optional .
IMX415 Sensor: 4K USB HDMI Camera adopt 1/2.8″ IMX415 Color CMOS sensor for ultra crystal image.
Focusing range of 20mm to infinity, able to lower it to about 1 inch off desktop and still get perfect focus.
The IMX415 sensor works with as little as 0.2 LUX.
This is an industrial grade camera with a metal housing and base that can be firmly attached for permanent mounting.
This is designed to be used in an industrial setting and is great for monitoring 3D printer/laser cutter/router. Good zoom in and out, it’s stable and can be used in an environment that isn’t suitable for a cheap webcam.
